Ocular IQ Mini | 7 kW | w/5m Cable
Welcome to the future of apartment charging with the IQ Mini, our cutting-edge charging solution is designed to meet the needs of modern electric vehicle owners, offering versatility, efficiency, and convenience at their doorstep.

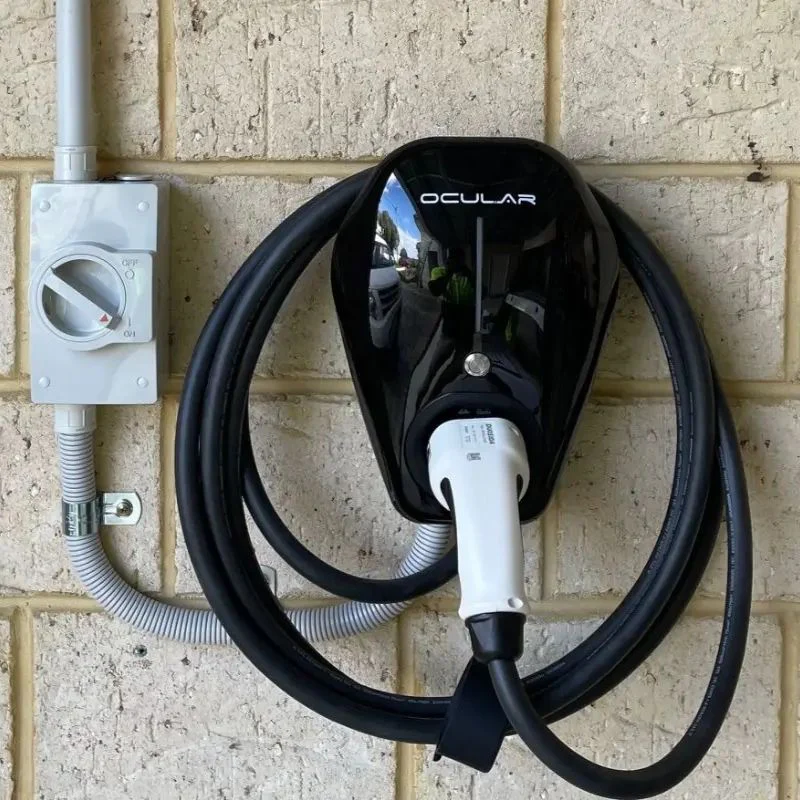

Built to withstand the Australian elements, it comes with IP55 protection, ensuring reliable performance in any weather conditions. The unitās compact design makes it ideal for apartment settings, allowing for easy installation and seamless integration into your home. Equipped with a 5m type 2 cable, the charger offers convenient and hassle-free charging for your EV.

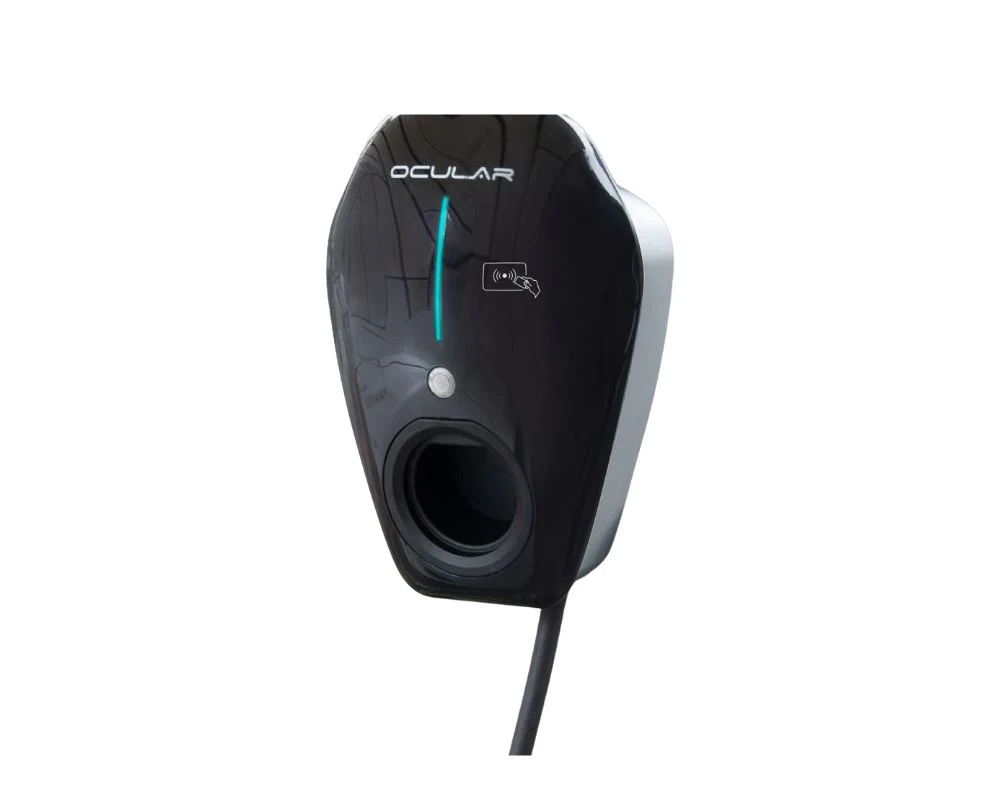

- Unique Design ā Compact with LED status indicator
- Flexible Output Current ā Charger can be configured to meet site requirements
- RFID Compatible ā Convenient authentication and controlled access
- Charger for every home ā 1-phase (7kW-tethered) & 3-phase (22kW-tethered) models available
Technical Specifications:
| Power Output | : | 7.2kW (1-Phase) |
| EV Charging Connector | : | 5m Type-2 Cable |
| Input and Output Voltage | : | 230V Ā± 20% |
| Input and Output Current | : | 32A max per phase |
| Recommended Circuit Breaker | : | 40A type A RCBO |
| Frequency (Hz) | : | 50/60Hz |
| Display | : | LED indication lights |
| RFID Reader | : | ISO14443 Type A cards compatible |
| Charger Control Method | : | Mobile App, physical button, RFID, start on plug |
| Internal RCD | : | 30mA AC & 6mA DC Leakage |
| Electrical Protection | : | Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning surge, Over temperature |
| OCPP | : | 1.6J and 2.0.1 (Firmware upgrade required) |
| Internet Connection | : | Ethernet, Wi-Fi, 4G |
| Additional Communication Type | : | Modbus (TCP/IP) |
| Energy Meter | : | Integrated Meter |
| Load Control | : | Compatible with Ocular Load Controller or OCPP smart profiles |
| Ambient Air Temperature for Operation | : | -30āĀ°C to +50Ā°Cā in operation |
| Ambient Air Temperature for Storage | : | -40Ā°Cā to +70Ā°Cā in storage |
| Working Humidity | : | 5% - 95% relative humidity, non-condensing |
| IP Performance | : | IP55, IK10 |
| Mounting | : | Wall Mount |
| Dimension (H x W x D, mm) | : | 398 * 285 * 226 mm |
| Net Weight | : | 4.5 kg |
| Certification | : | CE, IEC /EN 61851-1, IEC 61008-1-A1, IEC 62955-1-A1, IEC/EN 61851-21-2, IEC 62196-2, RCM |
| Warranty | : | 2 Years (Extended warranties available) |
