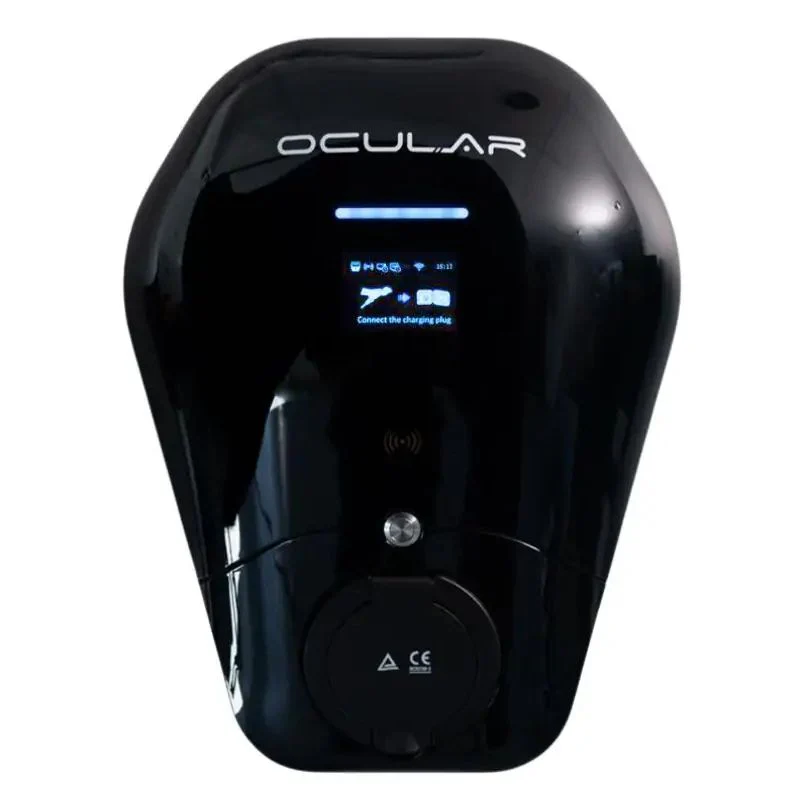

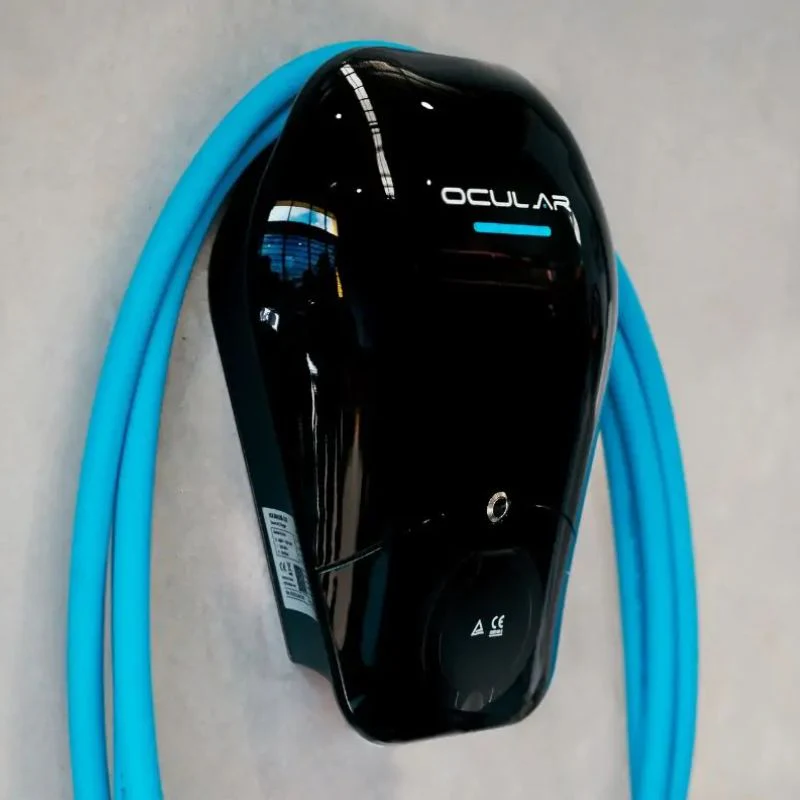

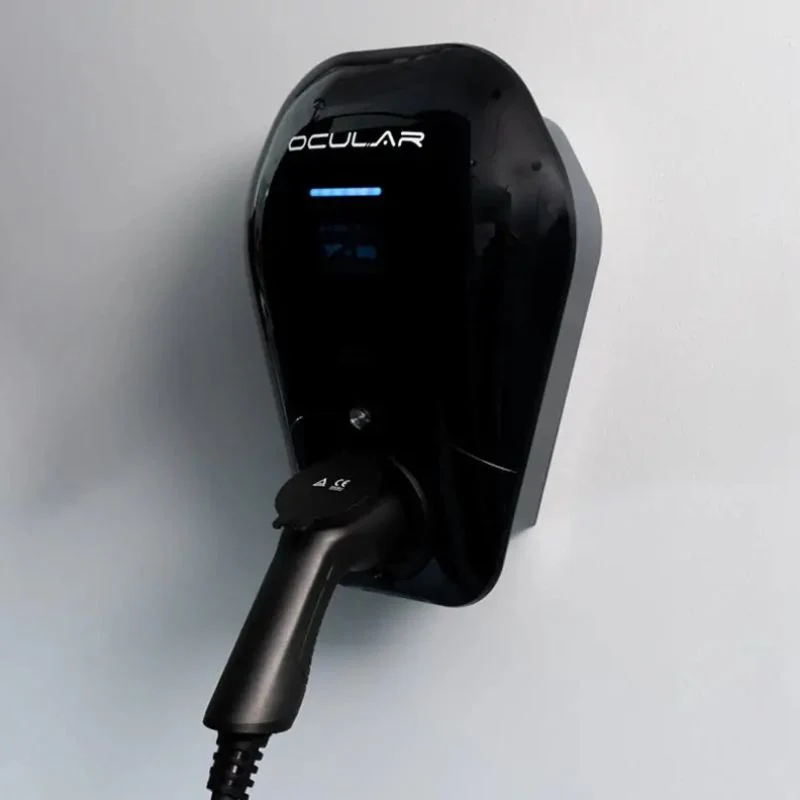

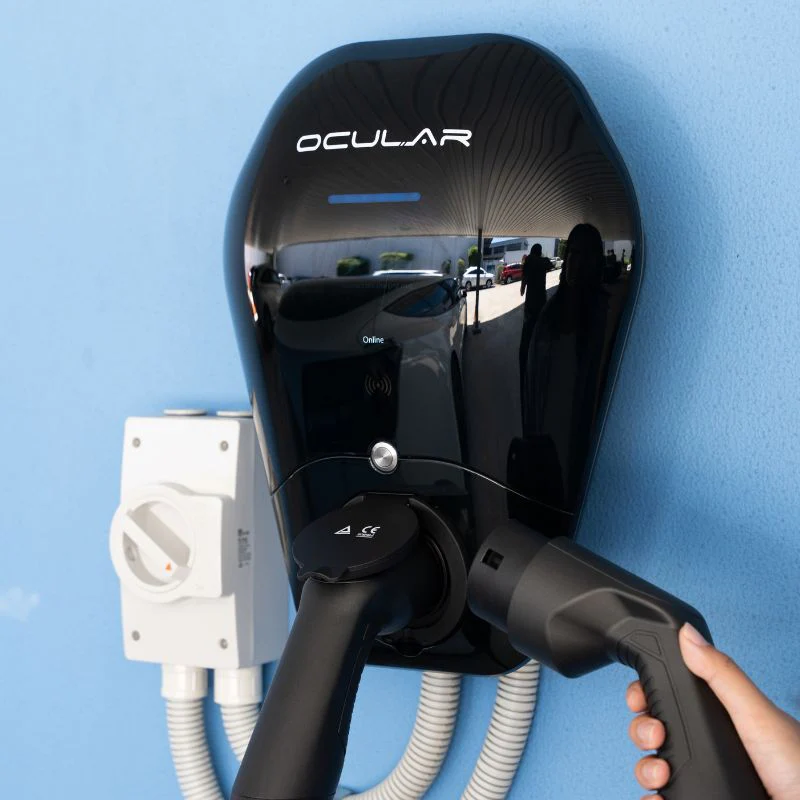

Ocular IQ Wallbox V2 | 22 kW | Socket
Ocular IQ Wallbox | Universal
The Ocular Charging solution is more than just a charging station Our range comes with intelligent integrations and industry-leading features and communication standards. This allows you to not only charge, but also control, communicate network, and bill for use* This way, Ocular provides the perfect solution to any EV problem whether residential, public, or commercial

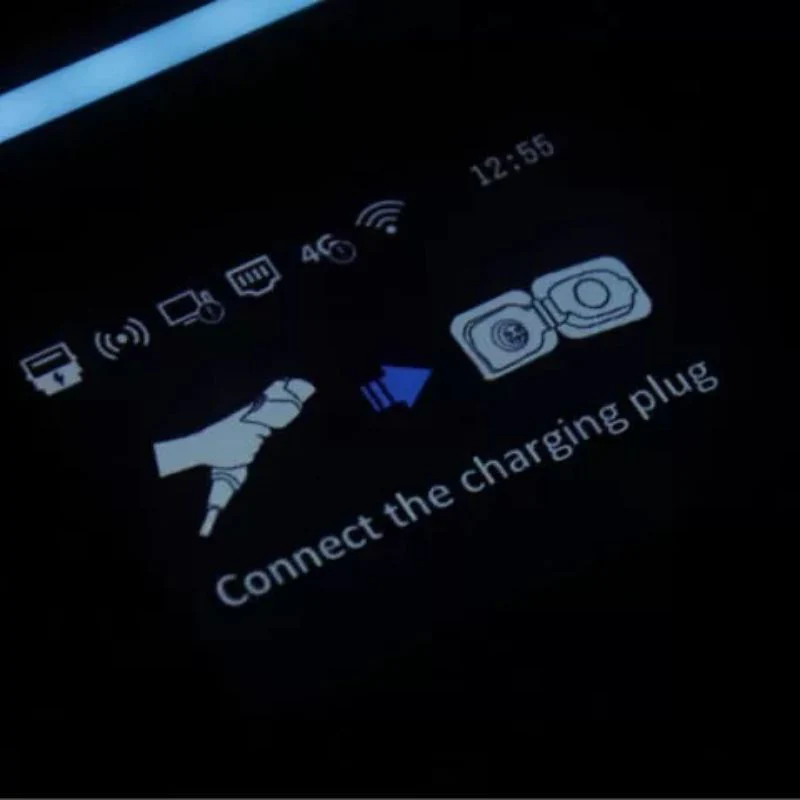

- 3 Inch LCD Screen for real-time charging data and driver feedback
- Overload integrated protection
- Coloured LEDs indicateĀ operating status
- Wifi / Ethernet
- Modbus
- Single & Three Phase
- Universal Charger

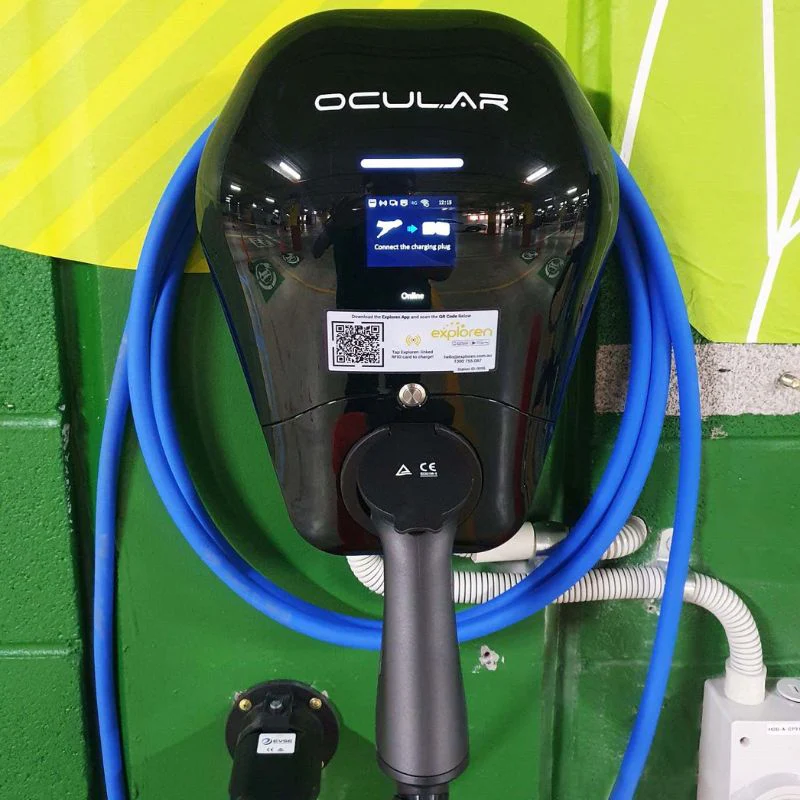

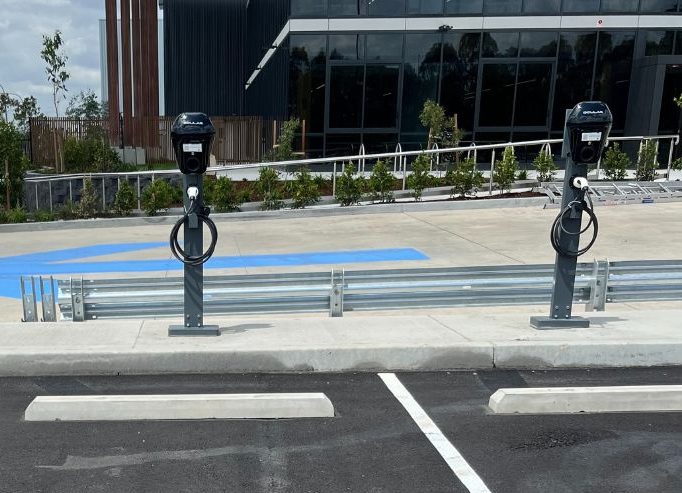

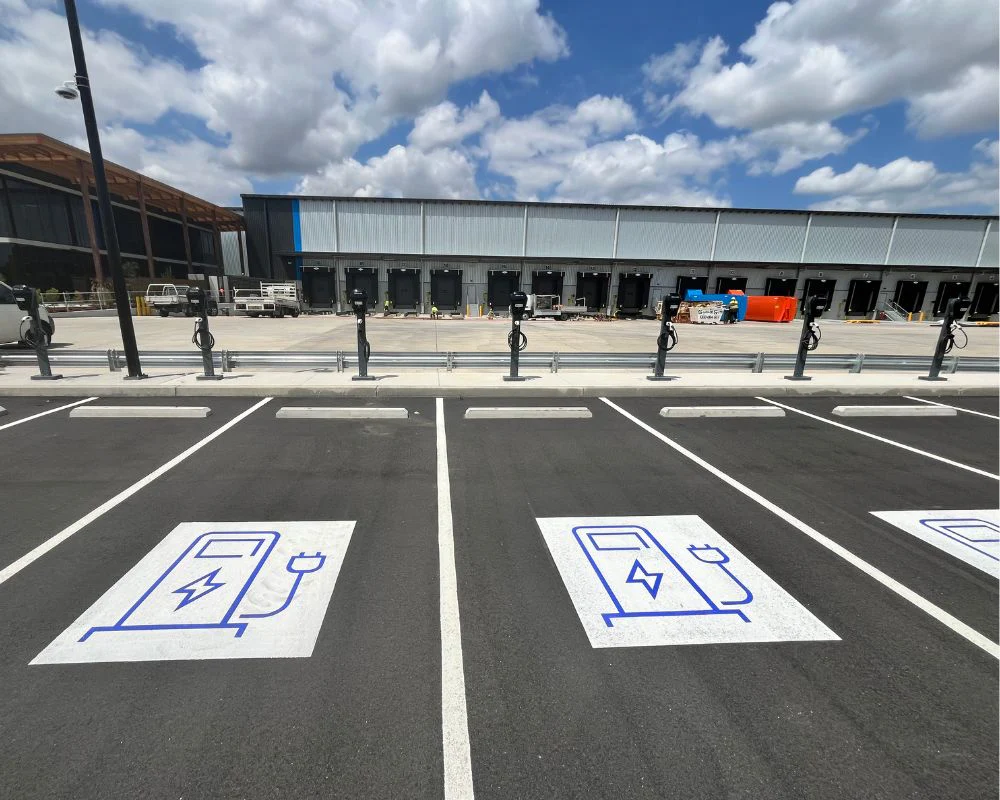

- Wall or pole mounted for convenience
- RFID Access
- Indoor and Outdoor Rated
- OEM Branding Available
- Modbus TCPU
- Billing by time and electricity via smartphone APP (OCPP subscription required)
- Compatible with all-electric vehicles and models
- Meets both European & Australian standards
Technical Specifications:
| Power Output | : | 22kW (3-Phase) |
| EV Charging Connector | : | Type-2 Socket |
| Input and Output Voltage | : | 400V Ā± 20% |
| Input and Output Current | : | 32A max per phase |
| Recommended Circuit Breaker | : | 40A type A RCBO |
| Frequency (Hz) | : | 50/60Hz |
| Display | : | 2.8" LCD Screen + LED indication lights |
| RFID Reader | : | ISO14443 Type A cards compatible |
| Charger Control Method | : | Mobile App, physical button, RFID, plug and charge |
| Internal RCD | : | 30mA AC & 6mA DC Leakage |
| Electrical Protection | : | Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning surge, Over temperature |
| OCPP | : | 1.6J and 2.0.1 (Firmware upgrade required) |
| Internet Connection | : | Ethernet, Wi-Fi |
| Additional Communication Type | : | Modbus (TCP/IP) |
| Energy Meter | : | MID Meter |
| Load Control | : | Compatible with Ocular Load Controller or OCPP smart profiles |
| Ambient Air Temperature for Operation | : | -30āĀ°C to +50Ā°Cā in operation |
| Ambient Air Temperature for Storage | : | -40Ā°Cā to +70Ā°Cā in storage |
| Working Humidity | : | 5% - 95% relative humidity, non-condensing |
| IP Performance | : | IP55 |
| Mounting | : | Wall Mount/Pole Mount |
| Dimension (H x W x D, mm) | : | 380 x 288 x160 mm |
| Net Weight | : | 5.4 kg |
| Certification | : | CE, IEC /EN 61851-1, IEC 61008-1-A1, IEC 62955-1-A1, IEC/EN 61851-21-2, IEC 62196-2, RCM |
| Warranty | : | 2 Years (Extended warranties available) |
