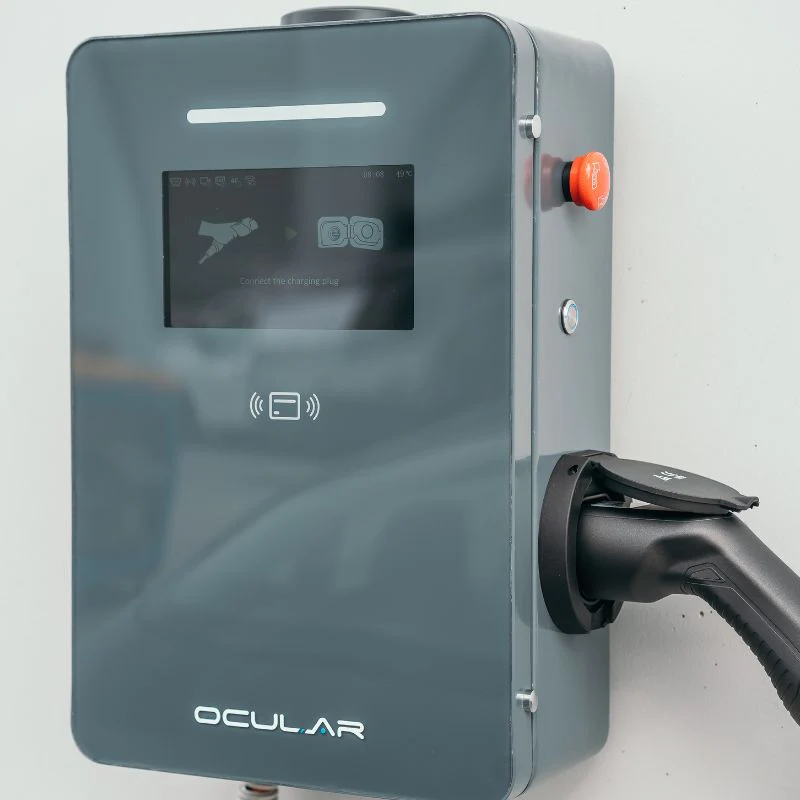

Ocular IQ Commercial V2 | 7kW | 4G | Socket
Ocular IQ OCPP provides a high-quality and cost-effective EV charging point designed to offer full Mode 3 fast charging to any EV in Australia. With OCPP 1.6J integration, the charger can be connected to any charging management system for easy operation, monitoring, and maintenance.

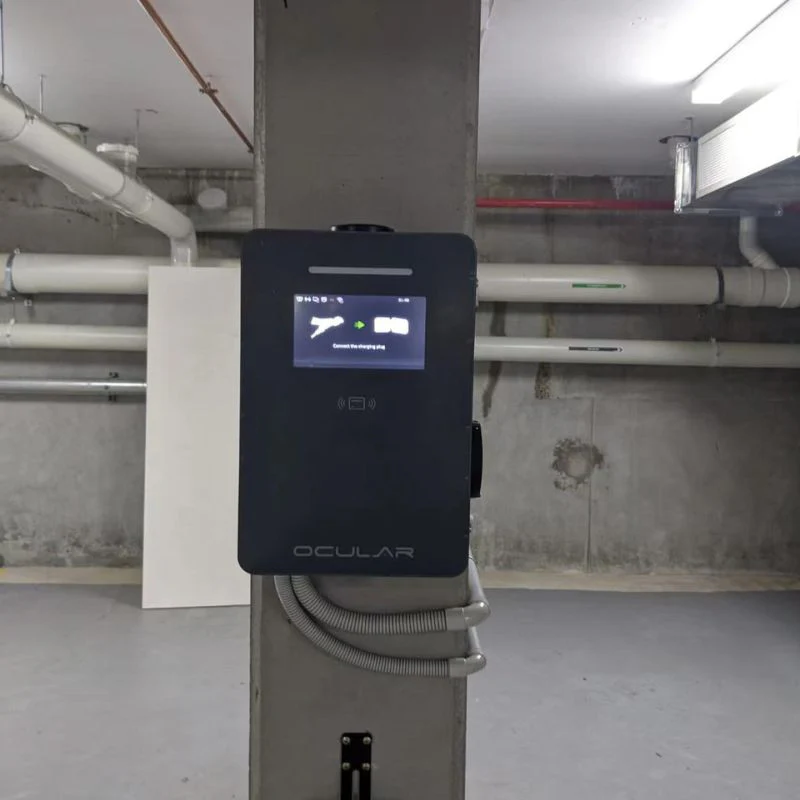

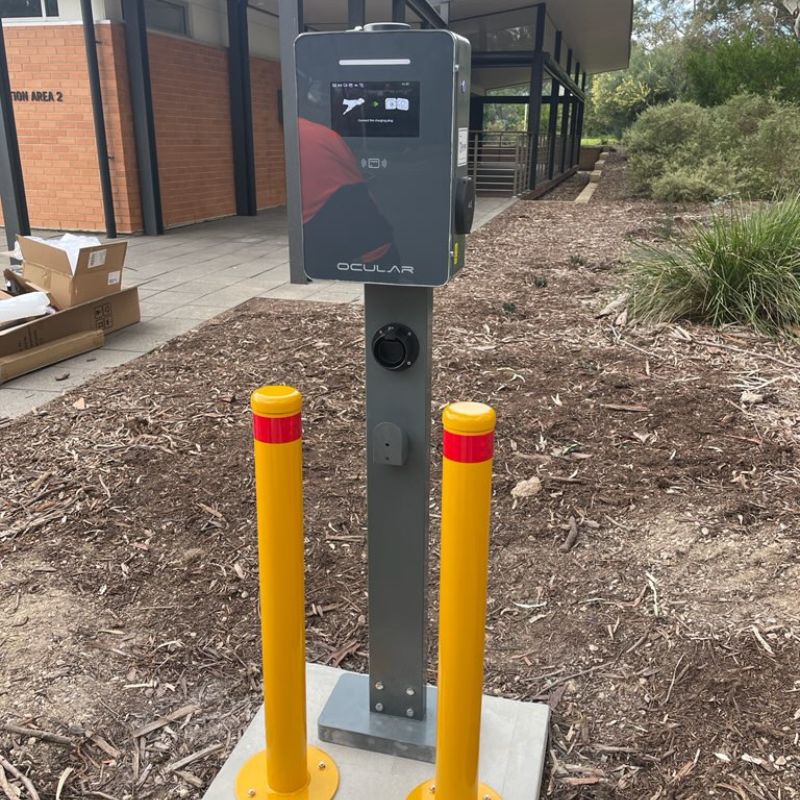

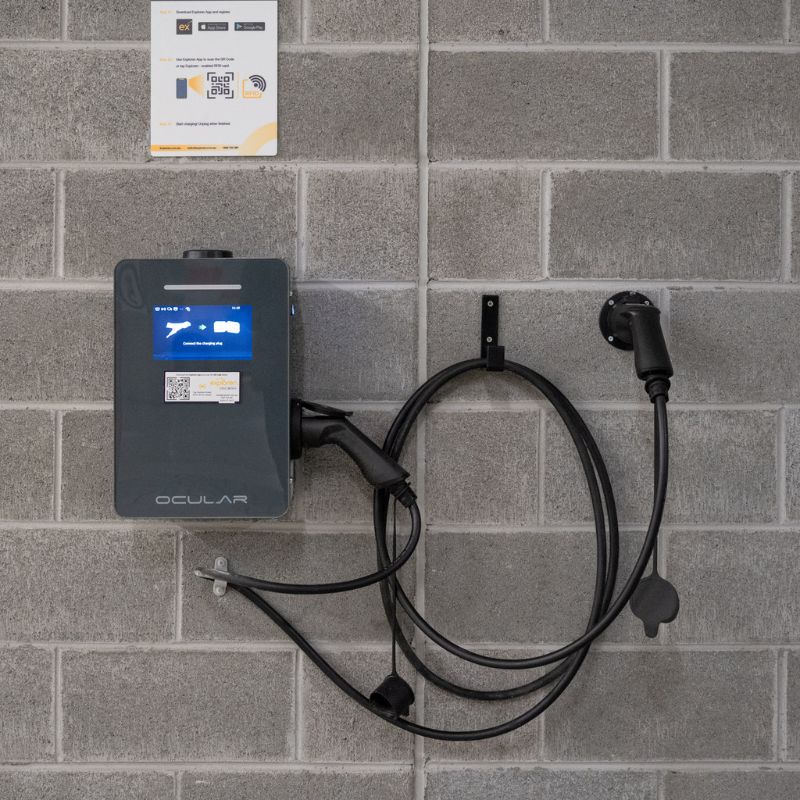

- Wall or post mounted
- Inbuilt Multi level load balancing capabilities with cluster connectivity
- Advanced 7’ LCD Display for live charging display
- Commercial metallic casing designed and tested to Australian conditions.
- Advanced Commercial Solar Integration – ( Requires an additional controller )
- Easy installation with a wide-angle door opening and modular components shorten the field time and maintenance.
- OCPP compatibility, supporting EV software for billing and fleet monitoring purposes
- Built in 4G modem
- Compatible with all-electric vehicles and models including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo
Technical Specifications:
| Power Output | : | 7.2kW (1-Phase) |
| EV Charging Connector | : | Type-2 Socket |
| Input and Output Voltage | : | 230V ± 20% |
| Input and Output Current | : | 32A max per phase |
| Recommended Circuit Breaker | : | 40A type A RCBO |
| Frequency (Hz) | : | 50/60Hz |
| Display | : | 7" LCD Screen + LED indication lights |
| RFID Reader | : | ISO14443 Type A cards compatible |
| Charger Control Method | : | Mobile app, physical button, RFID, plug and charge |
| Internal RCD | : | 30mA AC & 6mA DC leakage protection |
| Electrical Protection | : | Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning surge, Over temperature |
| OCPP | : | 1.6J and 2.0.1 (Firmware upgrade required) |
| Internet Connection | : | Ethernet, Wi-Fi, Optional 4G (Nano size sim) |
| Communication Type | : | Modbus (TCP/IP) |
| Energy Meter | : | MID Meter, Optional NMI Pattern Approved |
| Load Control | : | Compatible with Ocular Load Controller or OCPP smart profiles |
| Ambient Air Temperature for Operation | : | -30°C to +50°C in operation |
| Ambient Air Temperature for Storage | : | -40°C to +70°C in storage |
| Working Humidity | : | 5% - 95% relative humidity, non-condensing |
| Protection Rating | : | IP55, IK10 |
| Mounting | : | Wall Mount/Pole Mount |
| Dimension (H x W x D, mm) | : | 380 x 288 x 141 mm |
| Net Weight | : | 10 kg |
| Certification | : | CE, IEC /EN 61851-1, IEC/EN 61851-21-2, IEC 62196-2, RCM |
| Warranty | : | 2 Years (Extended warranties available) |
