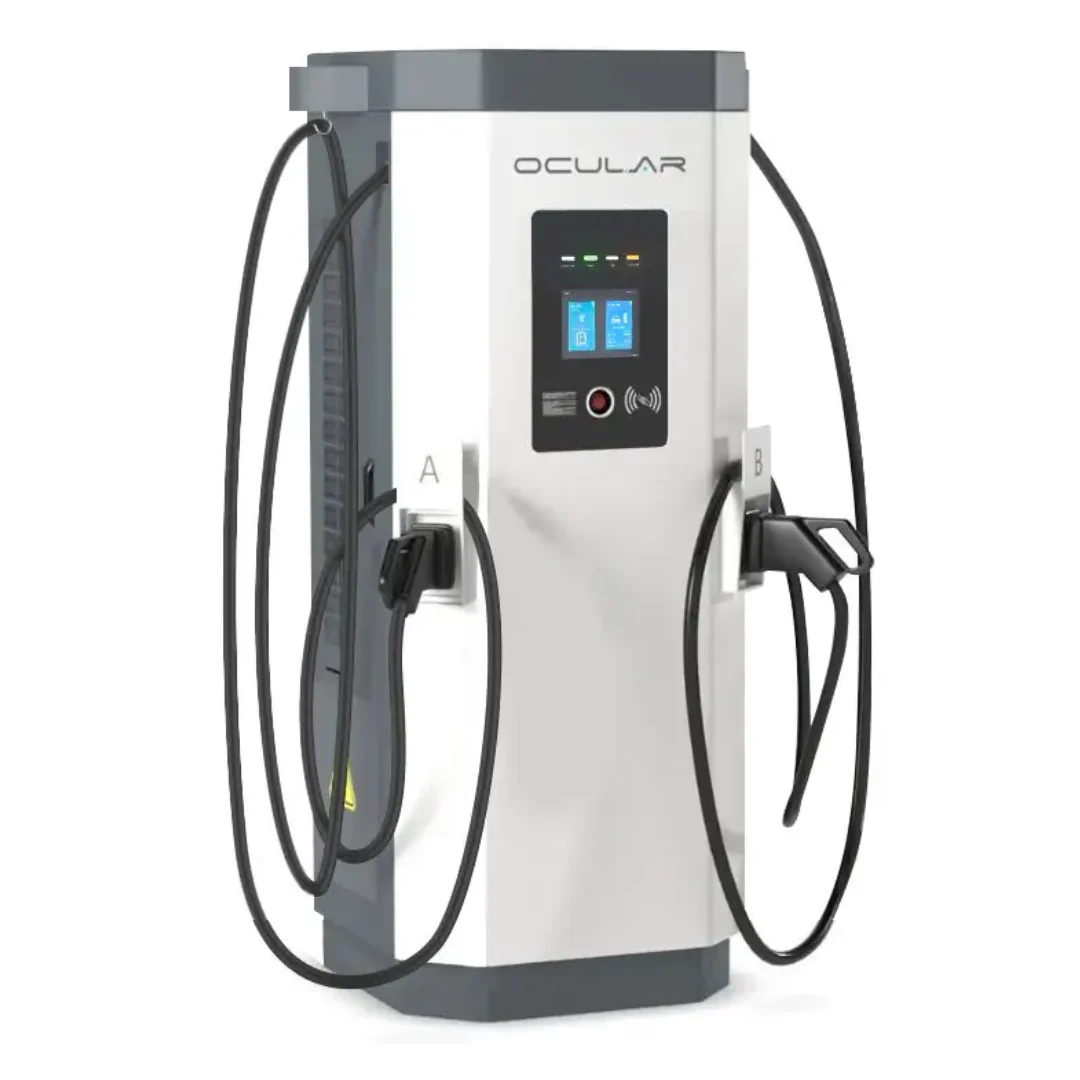

Ocular Atlas DC Charger | 120kW | Dual Charger CCS2

The Ocular Atlas Dual DC Charger is designed to supercharge electric vehicles conveniently with its robust metal casing and functional 8inch LED display.  The Ocular system is equipped to also power vehicles with high voltage battery systems. The Oculars compact size and touchscreen makes it perfect for public and fleet use. Importantly unlike other units the Ocular system is designed to charge 2 vehicles simultaneously allowing you to double your vehicle servicing.

The Ocular Atlas comes standard with dual CCS 2 ports but also other configurations to order including Chademo and CCS1. The unit is compatible with all major brands in Australia.

• The Ocular Dual DC Charger is designed to supercharge electric vehicles conveniently with its robust metal casing and functional 8inch LED display.
• The Ocular system is equipped to also power vehicles with high voltage battery systems. Compatible with all major EV Brands in Australia.
• The Ocular Dual DC Charger is designed to supercharge electric vehicles conveniently with its robust metal casing and functional 8inch LED display.
• The Ocular system is equipped to also power vehicles with high voltage battery systems. Compatible with all major EV Brands in Australia.
• Great for the office, commercial applications or roadside
• Charging Speed: AC Input Current (@ 3-phase 400V AC) –  87.0A (60kW) | 130.4A (90kW) | 173.9 (120kW)
• Can charge 2x EV’s at once
• Compatible with all-electric vehicles with DC Capabilities

Technical Specifications:

Rated Power Output	:	120kW
Number of Charging Ports	:	2
Plug Type	:	CCS2 as standard, other options available on request
Rated Input Voltage	:	3-Phase 400V ± 15%
AC Input Current @400V (Amps/phase)	:	185
Max AC Input Current (Amps/phase)	:	217
Frequency (Hz)	:	50/60Hz
Power Factor	:	>=0.99
Efficiency	:	94%
Input Cable Type	:	3P + N + PE
Output Voltage	:	150V-1000V DC (vehicle dependent)
Output Current	:	Max 200 Amps DC per port
Display	:	8" TFT LCD Touch Screen (IK08)
Charging Cable Length	:	7m Cable as standard. Other cable lengths available on request
Cable Management	:	Retractable pulley
User Authentication	:	Mobile app, physical button, RFID, Autocharge
RFID Reader	:	ISO14443 Type A cards compatible
Credit Card Payment Module	:	Optional Nayax credit card module upgrade
Emergency Stop	:	Push Button
OCPP	:	OCPP1.6J, OCPP2.0.1
Communication Interfaces	:	Ethernet, 4G (Standard size sim), Modbus (TCP/IP)
Load Control	:	Compatible with Ocular Load Controller or OCPP smart profiles
Ambient Air Temperature for Operation	:	-30°C℃ to +50℃°C
Ambient Air Temperature for Storage	:	-40°C℃ to +75℃°C
Working Humidity	:	95% relative humidity, non-condensing
Altitude	:	Up to 6000 feet (2000 m)
Protection Rating	:	IP55, IK10
Cooling	:	Forced Air
Dimensions (H*W*D) mm	:	1815 x 1008 x 868
Net Weight	:	400 kg
Electrical Protection	:	Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning surge, Over temperature
Certification	:	CE, IEC/EN 61851-1, IEC/EN 61851-23, IEC/EN 61851-21-2, RCM
Supported Language	:	Language Selectable by user on screen - English, French, German, Spanish, Italian, Portuguese, Russian, Čeština, Finnish, Chinese, Japanese, Romanian, Thai, Arabic, Turkish
Warranty	:	2 Years (Extended warranties available)
