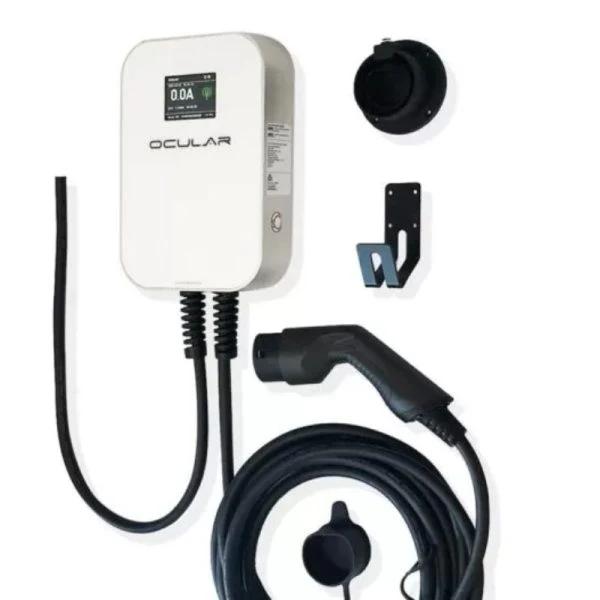

Ocular LTE Plus V3 | w/6m Type 2 Cable | 22 kW Three Phase

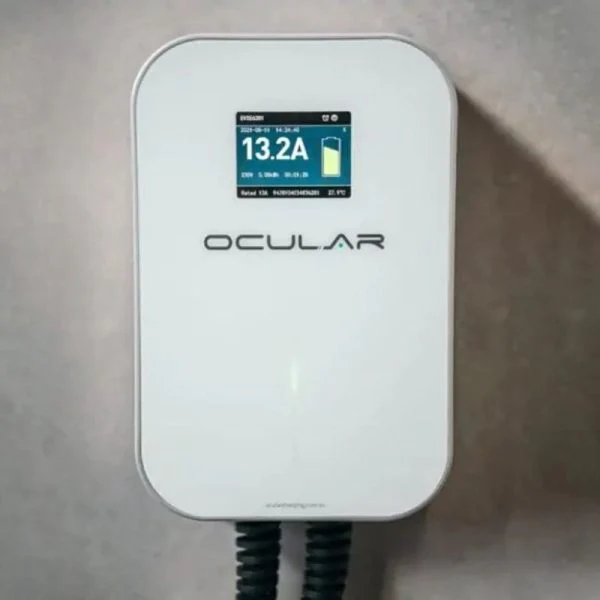

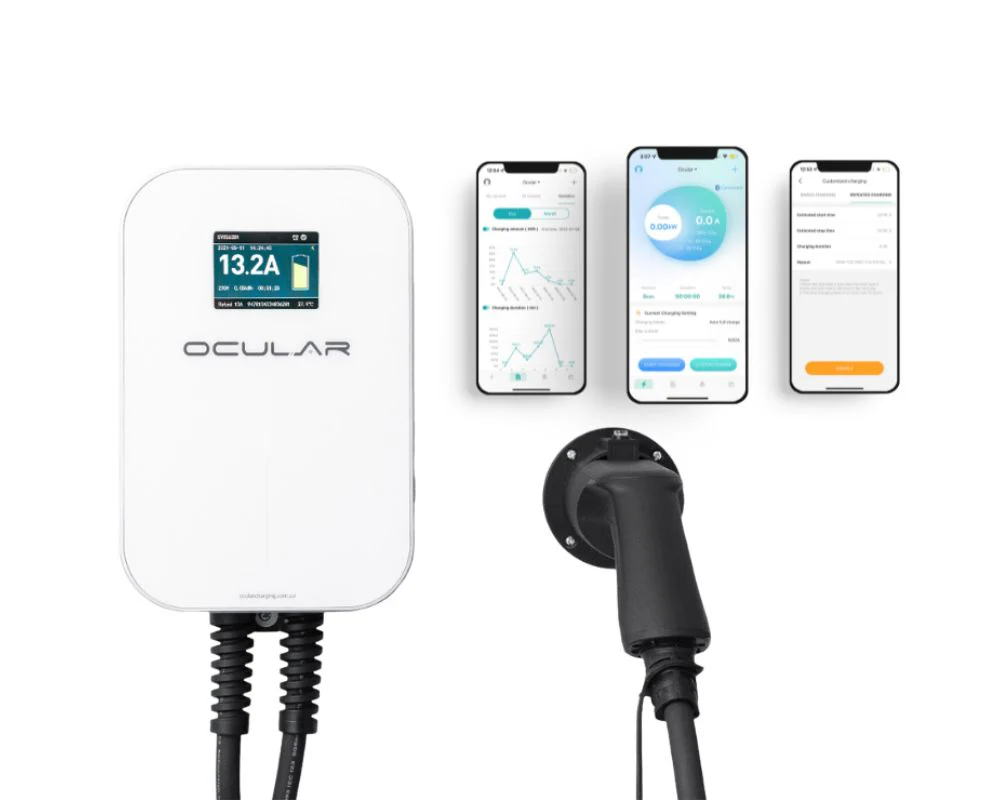

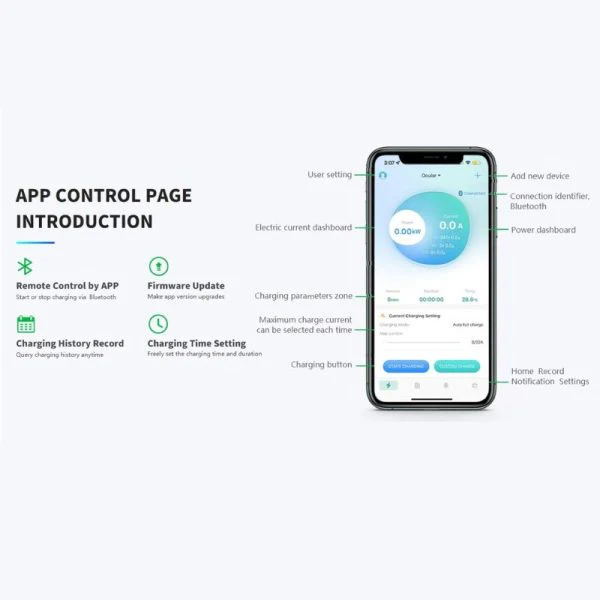

The Ocular LTE Plus EV Wallbox comes with a 6m Type 2 EV cable and Bluetooth Smartphone app. With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current & internal temperature.

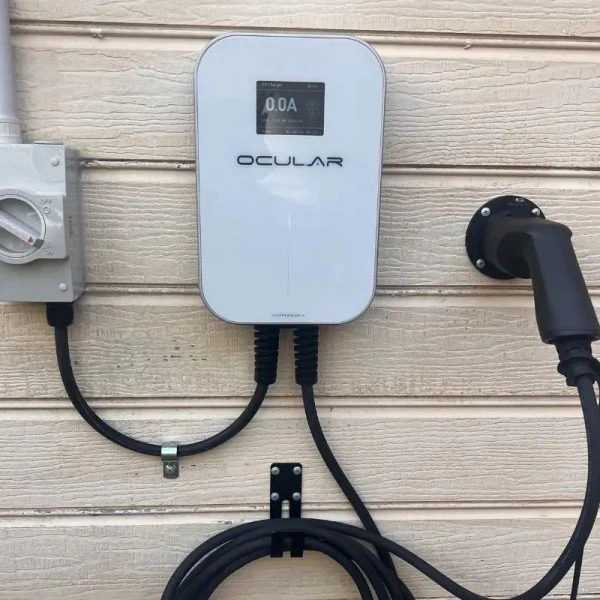

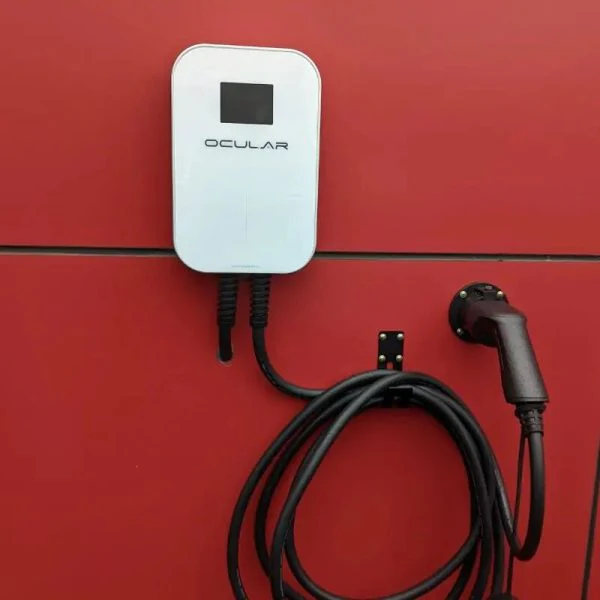

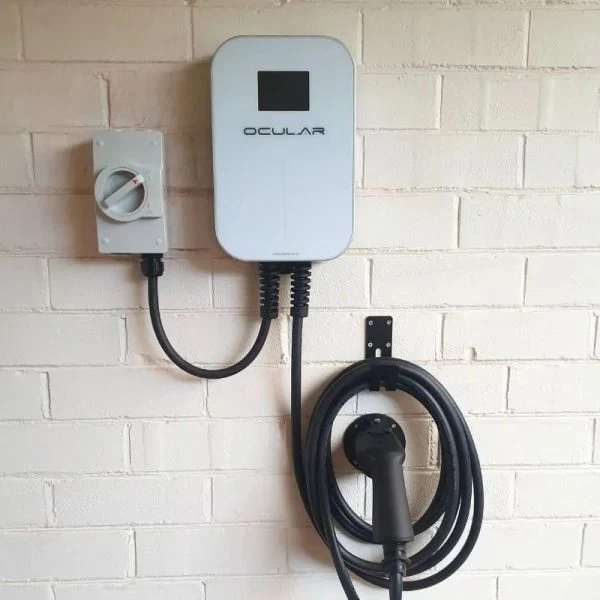

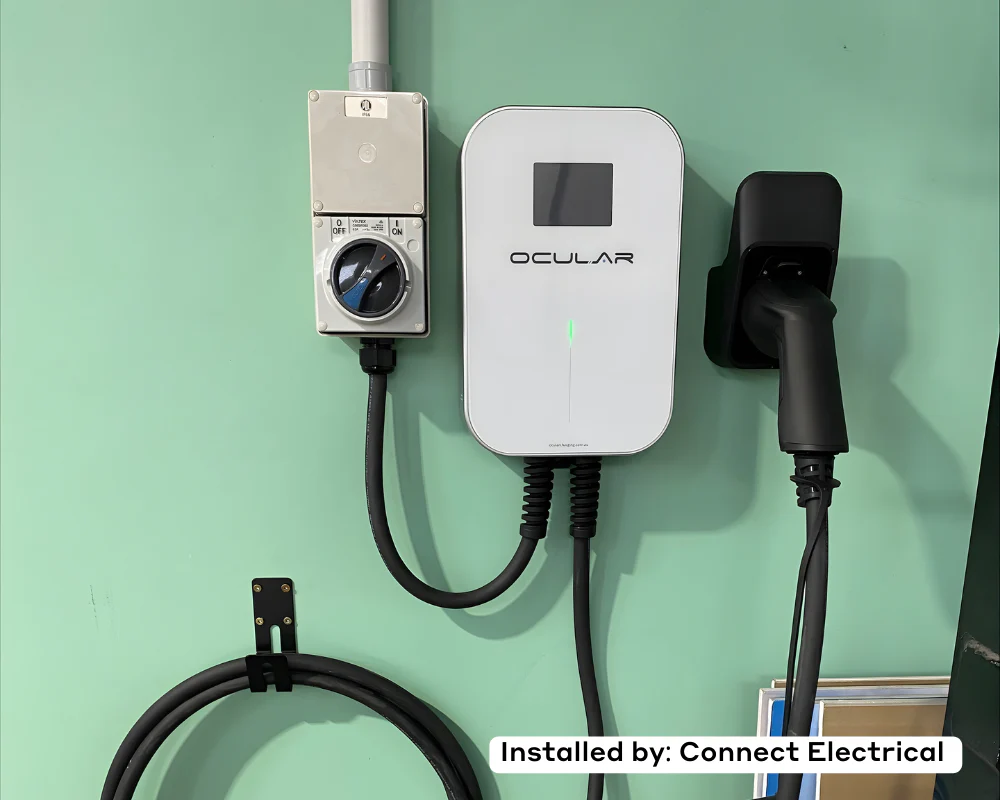

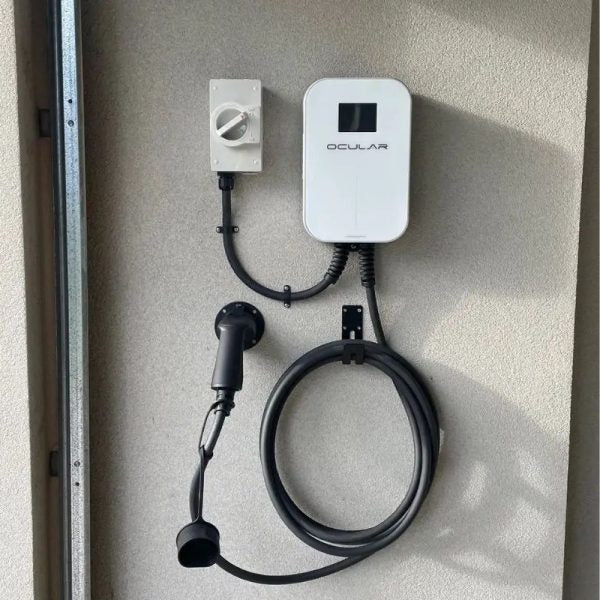

Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing has a robust IK10 rating with a waterproof IP55 rating. It can be easily installed on the wall, with stand mounting available as well.
Technical Specifications:
| Power Output | : | 22kW (3- Phase) |
| Charging Connector | : | Tethered 6m Type-2 Cable |
| Display | : | 3.5" LCD Screen + LED indication lights |
| Frequency (Hz) | : | 50Hz |
| Input and Output Voltage | : | 230V Ā± 20% per phase |
| Input and Output Current | : | 32A MAX per phase |
| Operating Temperature | : | -30ā to +55ā in operation |
| Storage Temperature | : | -40ā to +75ā in storage |
| Working Humidity | : | 95% relative humidity, non-condensing |
| Control Methods | : | Mobile app (bluetooth), physical button, start on plug OCPP (1.6J via ethernet only, additional configuration required) |
| OCPP Compatibility | : | OCPP 1.6J |
| Internet Connection | : | Ethernet (only used for OCPP) |
| IP Performance | : | IP55 |
| Internal RCD | : | 30mA AC + 6mA DC |
| Electrical Protection | : | Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning surge, Over temperature, Earth leakage |
| Meter | : | Integrated Energy Meter |
| Standby Power Consumption | : | <15W |
| Mounting | : | Wall mountable |
| Dimension (H x W x D, mm) | : | 318 x 200 x 80 mm |
| Net Weight | : | 8.5 kg |
| Recommended Cable Breaker | : | 40A three phase type A RCBO |
| Recommended Cable Size (50m run) | : | 10mm2 4C+E |
| Certification | : | CE, TUV, FCC, CSA, RoHS, RCM |
| Warranty | : | 3 years |
Original: $810.90
-65%$810.90
$283.81Product Information
